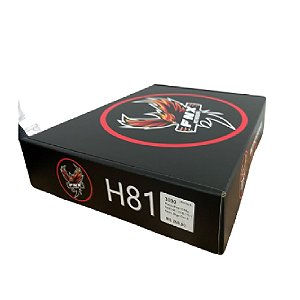

Placa Mae 1150p Art Tech H81 M.2 Ddr3 Lan Gigabit
Prosessor Support
Intel LGA 1150 Celeron/Pentium/Core 13/15/17
Chipset
Intel H81 Chipset
Memory Support
2 DIMM Slots, Dual Channel DDR3 1066/1333 /1600 MHz up to 16GB
LAN
Realtek 1000 Mbps LAN onboard
Audio
Realtek ALC 6-channal HD Audio Codec onboard
Storage Support
1* SATA 3.0 Ports, 3* SATA 2.0 Ports
PCIe-M.2 NVMe Gen 3 x 2.0
Expansion Slots
1 PCIe-Ex16, 1* PCIe-Ex1
USB
4* USB 2.0 port
2 USB 3.0 port
2 USB connector on board
Back Panel
4* USB 2.0
2* USB 3.0
1* VGA port
1* HDMI port
1* RJ45 port
1* 3-in-1 Audio port(line in/line out/MIC in)
On Board Connectors
1 24-pin ATX power connector
1 4-pin ATX 12V power connector
2 USB connector can support 4*USB 2.0
1 F-AUDIO connector
1 F-PANEL connector
1 F-SPEAKER connector
1 FAN connector
1 LPC-DEBUG connector
Form Factor
Micro-ATX (170mm 190mm)
